Application Spotlight
Northwestern University Seeley G. Mudd Hall
Application Spotlight Location:
Evanston, IL
Monoxivent Representative:
Hatchell & Associates – Elmhurst, IL
Architect, Engineers & Consultants:
Architect/Structural Engineer: FLAD Architects Inc. Mechanical, Electrical and Plumbing Engineer - Affiliated Engineers Inc. Civil Engineer: Primera Engineers, Ltd. EMF/EMI Consultant: Field Management Service Vibration Consultant: Vibro-Acoustic Consultants Cost Estimator: The Concord Group Construction Manager: Walsh Construction Site Preparation: Pepper Construction
General Contractor:
Walsh Construction
Details:
(4) 32” Ø FRP stacks with a 5-foot reduction to 28” Ø, total length of 35’ tall with integral roof curb cap and square to round fan outlet construction. All vinyl ester construction with a dark gray gel coat.
(2) 10” Ø FRP stacks with a 5-foot reduction to 6” Ø, total length of 38’ tall with integral roof curb cap and square to round fan outlet construction. All vinyl ester construction with a dark gray gel coat.
Summary:

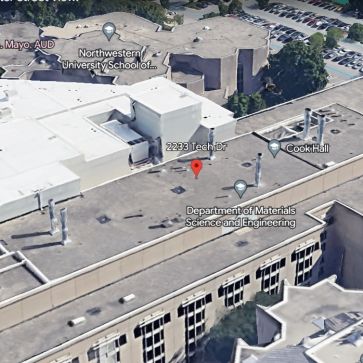

Thanks to a complete renovation, the facility formerly known as Mudd Library at Northwestern University has expanded both vertically (adding two floors) and horizontally (each floor grew by 75 percent). With this expansion came the need to provide extensive exhaust fan capabilities.

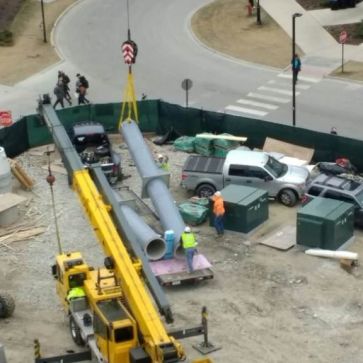

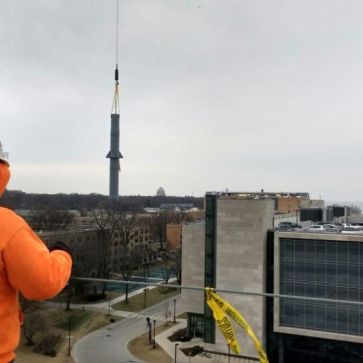

A vital part of the University’s growing research ecosystem, the newly overhauled building is home to beautiful and highly functional laboratories. Monoxivent partnered with Hatchell & Associates to supply a total of six (6) Fiberglass Reinforced Plastic exhaust stacks for laboratory and chemical fume exhaust fans. These stacks incorporated integral FRP curb caps factory manifolded to the stack body to create a completely waterproof installation.
